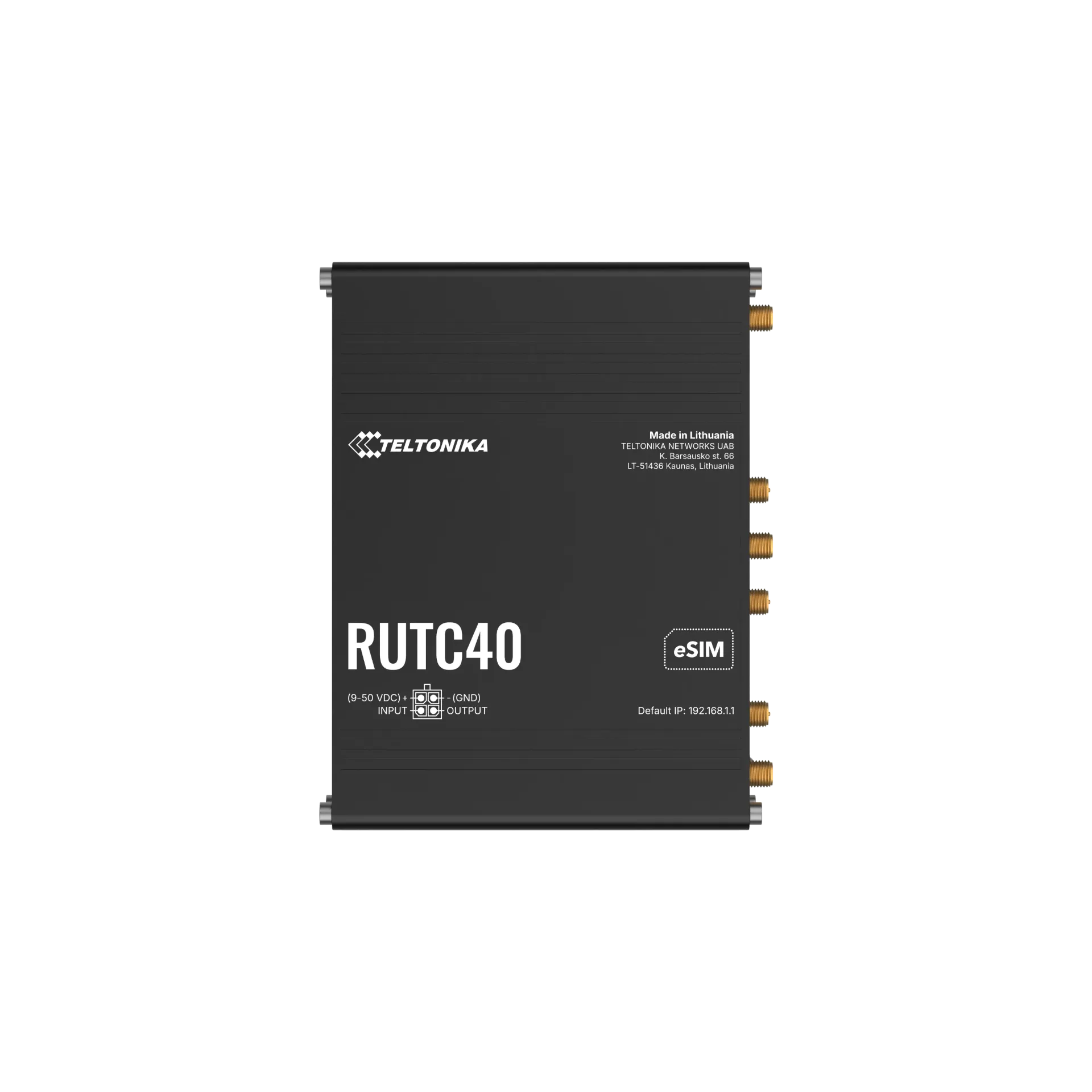

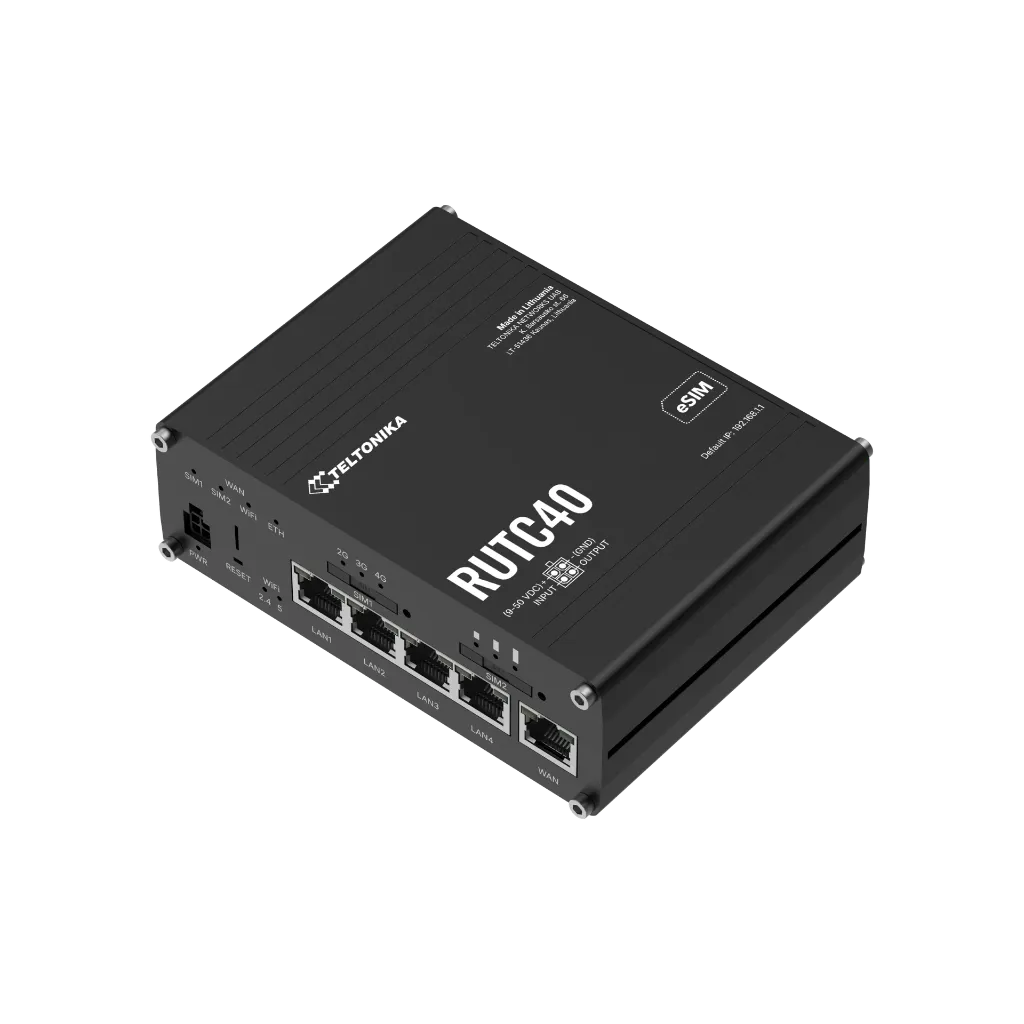

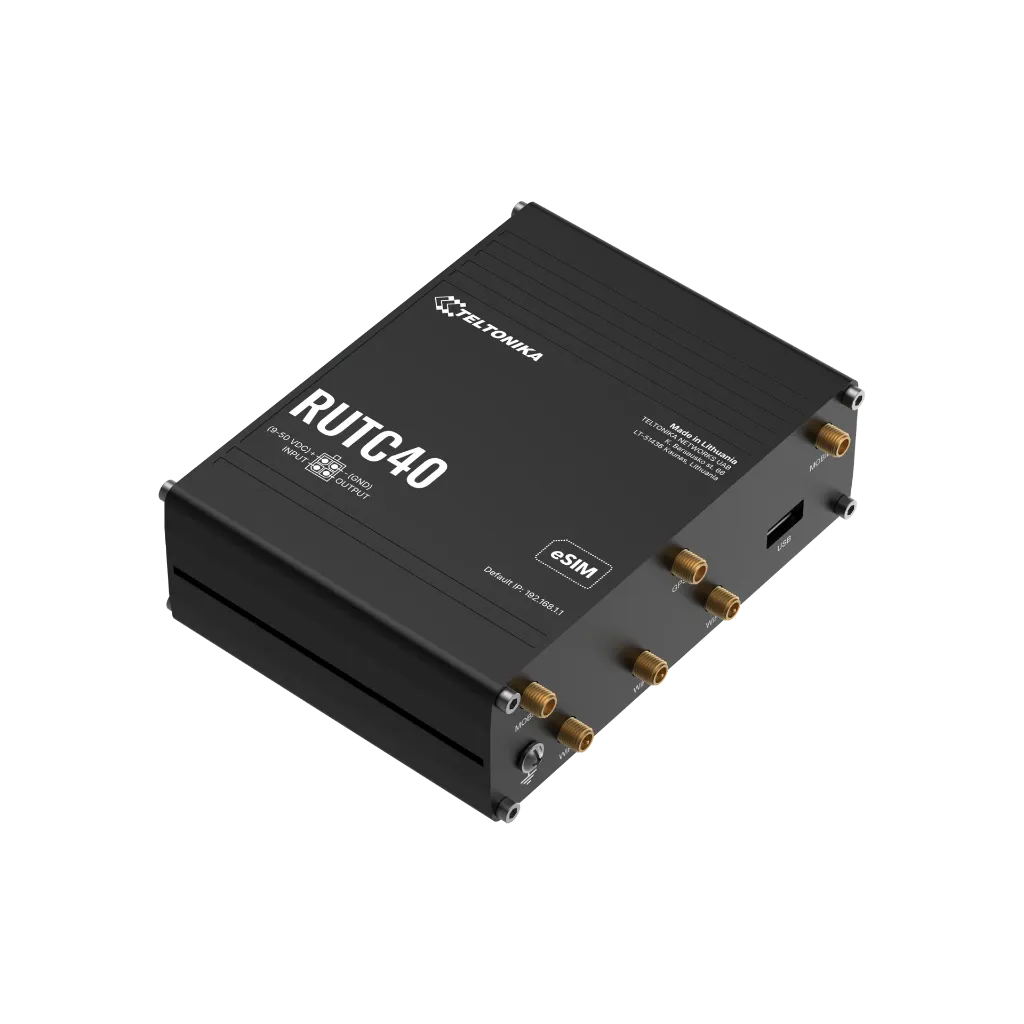

TELTONIKA RUTC40 Routeur Edge 4G Global

Name: TELTONIKA RUTC40 Routeur Edge 4G Global
SKU: RUTC40000000
Price: 370.0 EUR
Availability: InStock

(0 review)

RUTC40

GLOBAL 4G EDGE ROUTER

Experience robust on-site computing for industrial environments with the RUTC40 edge router. This compact yet powerful and flexible device offers global 4G Cat 4 connectivity thanks to a Telit modem, combined with powerful processing capabilities and dual-band Wi-Fi 6. With integrated Docker support, you can run containerised applications directly on the router. With 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC40 provides real-time data logging, seamless cloud integration, and compatibility with the Remote Management System (RMS).

370.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Shipping: 2-3 business days

TELTONIKA RUTC40 Global 4G Edge Router

This compact yet powerful and flexible device offers global 4G Cat 4 connectivity thanks to a Telit modem, combined with robust processing capabilities and dual-band Wi-Fi 6. With integrated Docker support, you can run containerised applications directly on the router. With 1 GB of RAM, a dual-core 1.3 GHz CPU, and industrial RutOS features, the RUTC40 provides real-time data logging, seamless cloud integration, and compatibility with the Remote Management System (RMS).

Global 4G

Enable smarter edge computing via 4G Cat 4 with Telit modem

ENHANCED PROCESSING POWER

Dual-core 1.3 GHz CPU, 1 GB RAM and 8 GB flash memory

DOCKER SUPPORT

Run Docker containers directly on the router to implement custom solutions

Wi-Fi 6

Dual-band multi-user MIMO for superior wireless performance

Product properties

HARDWARE	Teltonika
Product code	RUTC40000000
EAN code
5G	No
4G/LTE	Yes, Cat 4
2G/3G	2G/3G
CPU	Dual Core 1.3 GHz
RAM (GB)	1GB, DDR4
Flash Memory (MB)	16MB Serial NOR, 8 GB eMMX Flash
Power supply voltage	9-30 V DC, 4 pin connector
eSim	Yes
SIM card slots	2 Mini Sim 2FF

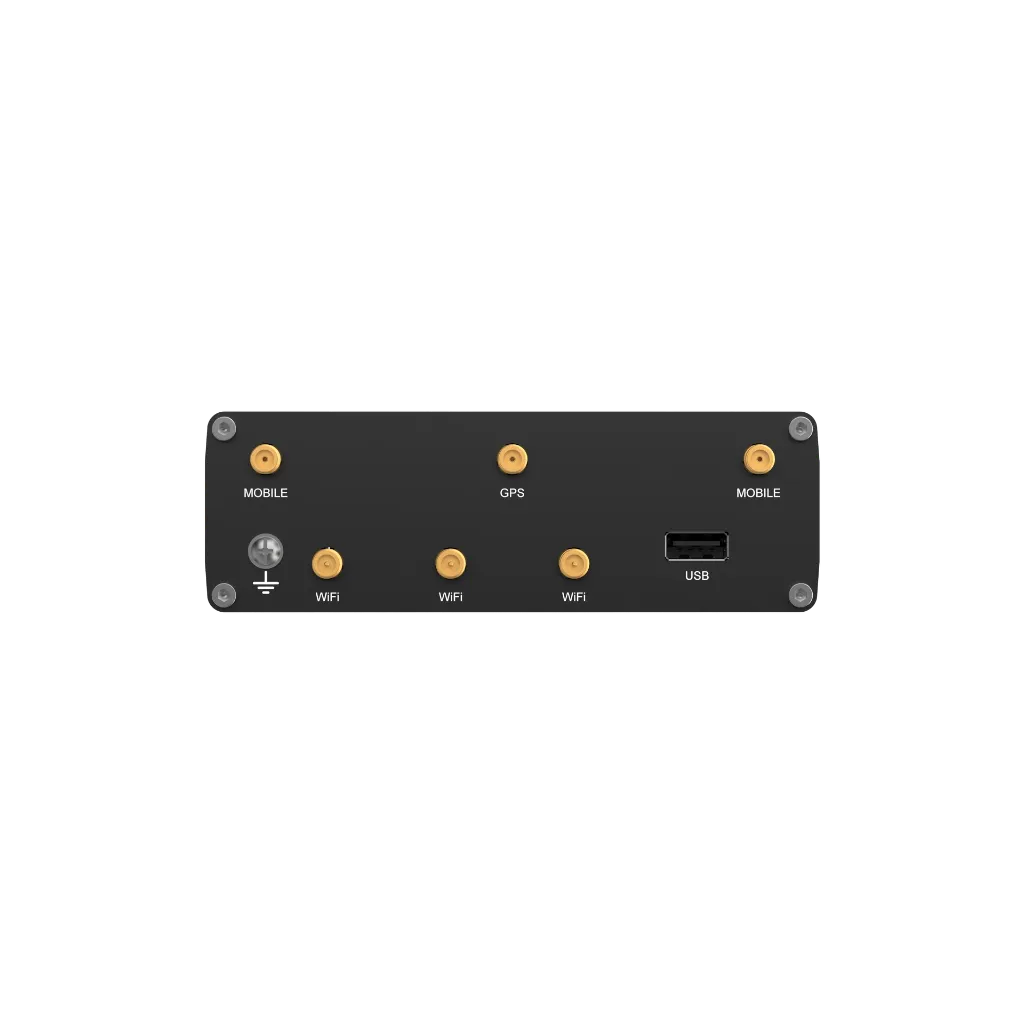

Antenna connectors	2 X SMA for LTE - 2 x RP-SMA for WIFI - 1x SMA for GNSS

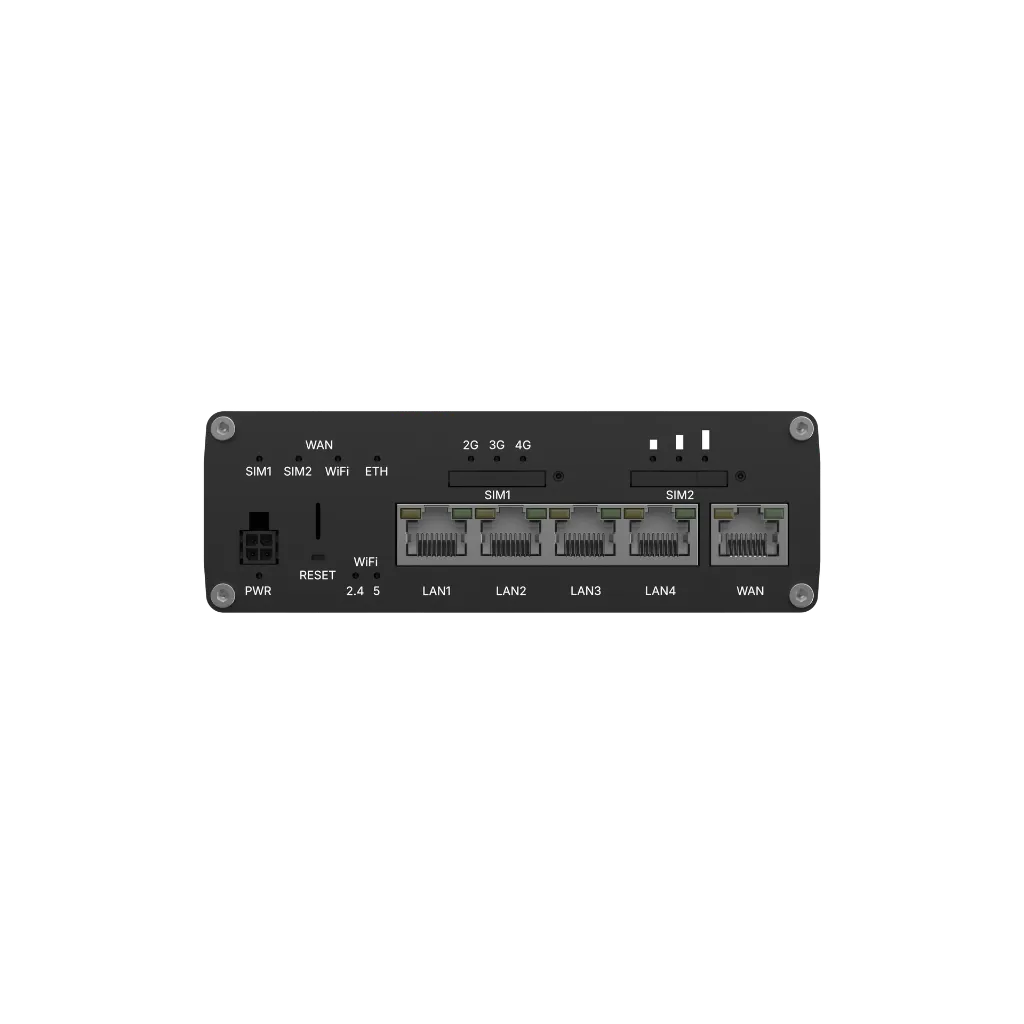

Ethernet ports	5 x RJ45: 1WAN / LAN configurable, 4x LAN
Speed Internet ports (Mbps)	10/100/1000 Mbps
Active POE- OUT	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Active POE-IN	-
Passive POE-IN	Yes
WiFi standard	802.11b/g/n/ac/ax (Wi-Fi 6) data transmission up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
GNSS	Yes , GPS, GLONASS, BeiDou, Galileo and QZSS
Inputs / Outputs	2 stuks 1 x Digitael Ingang, 0 - 6 V gedeceerd als logisch Laag, 8 - 50 V gedetecteerd als logisch hoog , 1 x Digitale Uitgang, Open collector uitgang, max 50 V, 300 mA
Serial RS232	No
Serial RS485	No
Mbus	No
Bluetooth	-
SD Card	No
USB	Host
Integrated din rail mounting	No
Earthing terminal	Yes
Temperature range	-40 to +75 °C
Housing	Aluminium , IP30
Dimensions	130.4 x 42.6 x 104 mm

SOFTWARE
Operating System	RutOS : (OpenWrt based Linux OS)
Mobile options	SIM switch, Status, SMS, USSD, Block/Allow lijst, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing
Wireless options	Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate
Network options	Routing, Network protocols, VoIP passthrough support, Connectie monitoring, Firewall, Firewall status pagina, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, IGMP Proxy, Port Mirroring
Security	Authenticatie, Firewall, Attack prevention, VLAN, Mobile quota controle, WEB filter, Access controle, TPM, Certificate Manager, 802.1x
VPN	OpenVPN, OpenVPN Encryptie, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale, Netbird, EoIP, OpenConnect
Monitoring and Management	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
Services	BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM, API, Docker
Location Tracking	GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing
SMS features	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
HOTSPOT	External/Internal Radius, SMS OTP, MAC authentication, Walled Garden Hotspot 2.0 is a Wi-Fi standard that enables a seamless, secure and automatic connection to trusted secure networks.
