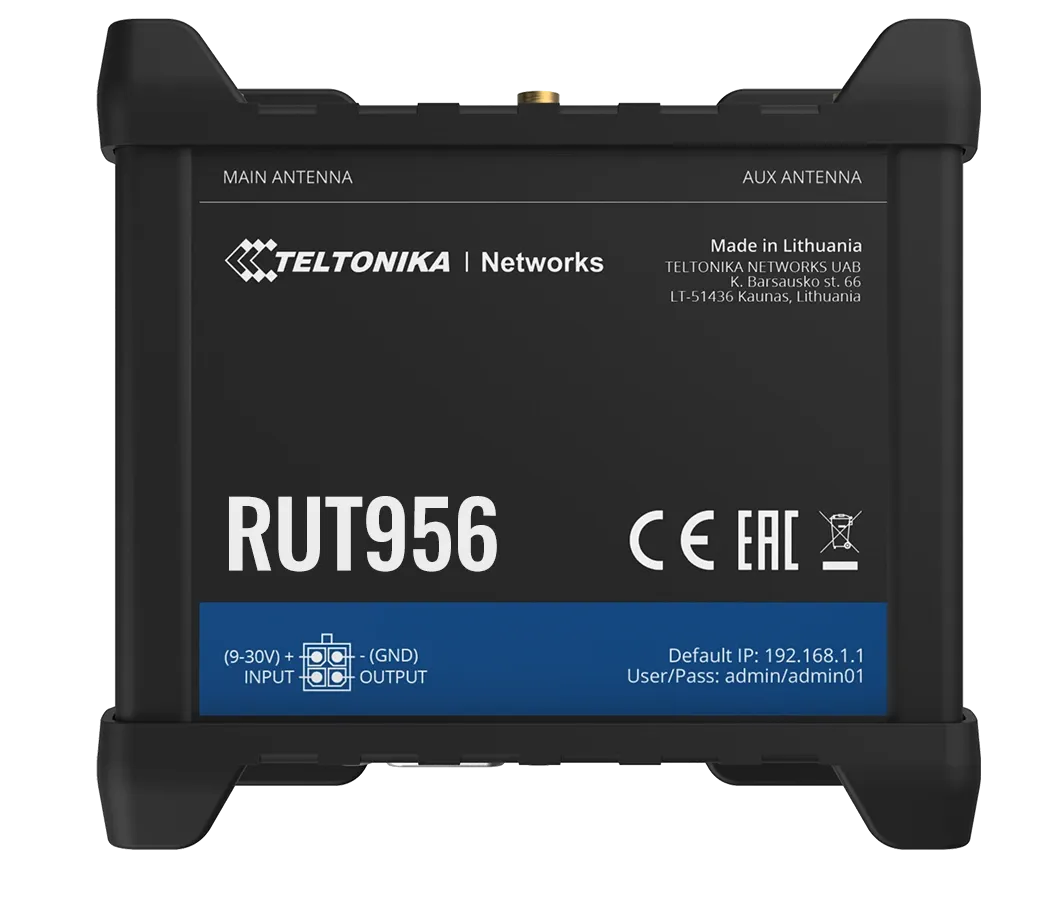

TELTONIKA RUT956

Name: TELTONIKA RUT956
SKU: RUT956200000
Price: 247.0 EUR
Availability: InStock

(0 review)

The Teltonika RUT956 is an industrial router that combines dual-SIM mobile 4G LTE, Wi-Fi, and wired connectivity options, and also offers GNSS capabilities. Automatic WAN failover ensures guaranteed availability, even if the primary connection is lost. Serial communication interfaces allow for the integration of a wider variety of devices into the solution ecosystem, including older equipment. Digital and analogue I/O with advanced RutOS software features facilitate the control, automation, and event notifications of equipment. Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.

247.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Shipping: 2-3 business days

INDUSTRIAL CELLULAR ROUTER
The RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable the integration of a wider range of devices within the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

CONNECTIVITY
4G LTE (Cat 4), 3G, 2G

DUBBELE SIM
Met automatische failover, back-up WAN en andere schakelscenario's

MEERDERE INTERFACES
Ethernet, serieel (RS232, RS485) en meerdere in- en uitgangen

GNSS
Global Navigation Satellite System voor locatiediensten en tijdsynchronisatie

Product properties

HARDWARE	Teltonika
Product code	RUT956200000
EAN code
5G	No
4G/LTE	Yes
2G/3G	Yes
CPU (MHz)	590
RAM (MB)	128
Flash Memory (MB)	16
Power supply voltage	9-30 V DC, 4 pin connector
eSim	Yes
SIM card slots	2 Mini Sim 2FF
Antenna connectors	2 X SMA for LTE - 2 x RP-SMA for WIFI - 1x SMA for GNSS
Ethernet ports	4 x RJ45, 1 WAN / LAN configurable
Speed Internet ports (Mbps)	10/100 Mbps
Active POE- OUT	-
Active POE-IN	-
Passive POE-IN	Yes
WiFi standard	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
GNSS	Yes , GPS, GLONASS, BeiDou, Galileo and QZSS
Inputs / Outputs	7 pieces 1 x digital dry input (0 - 3 V) 1 x digital galvanically isolated input (0 - 30 V) 1 x analogue input (0 - 24 V; with 4-20 mA capacity), 1 x digital non-isolated input (on 4-pin power connector) 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x digital open collector output (30 V, 300 mA, on 4-pin power connector)
Serial RS232	Yes
Serial RS485	Yes
Mbus	No
Bluetooth	-
USB	Host
Integrated din rail mounting	No
Earthing terminal	No
Temperature range	-40 to +75 °C
Housing	Aluminium , IP30
Dimensions	100 x 110 x 50 mm
SOFTWARE
Operating System	RutOS : (OpenWrt based Linux OS)
Mobile options	SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM PIN code management, APN, Bridge, Passthrough
Wireless options	Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate
Network options	VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, Port Mirroring
Security	Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation
VPN	Open VPN, Multiple clients and one server can run simultaneously, 27 encryption methods
Monitoring and Management	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
Services	BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM
Location Tracking	GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing
