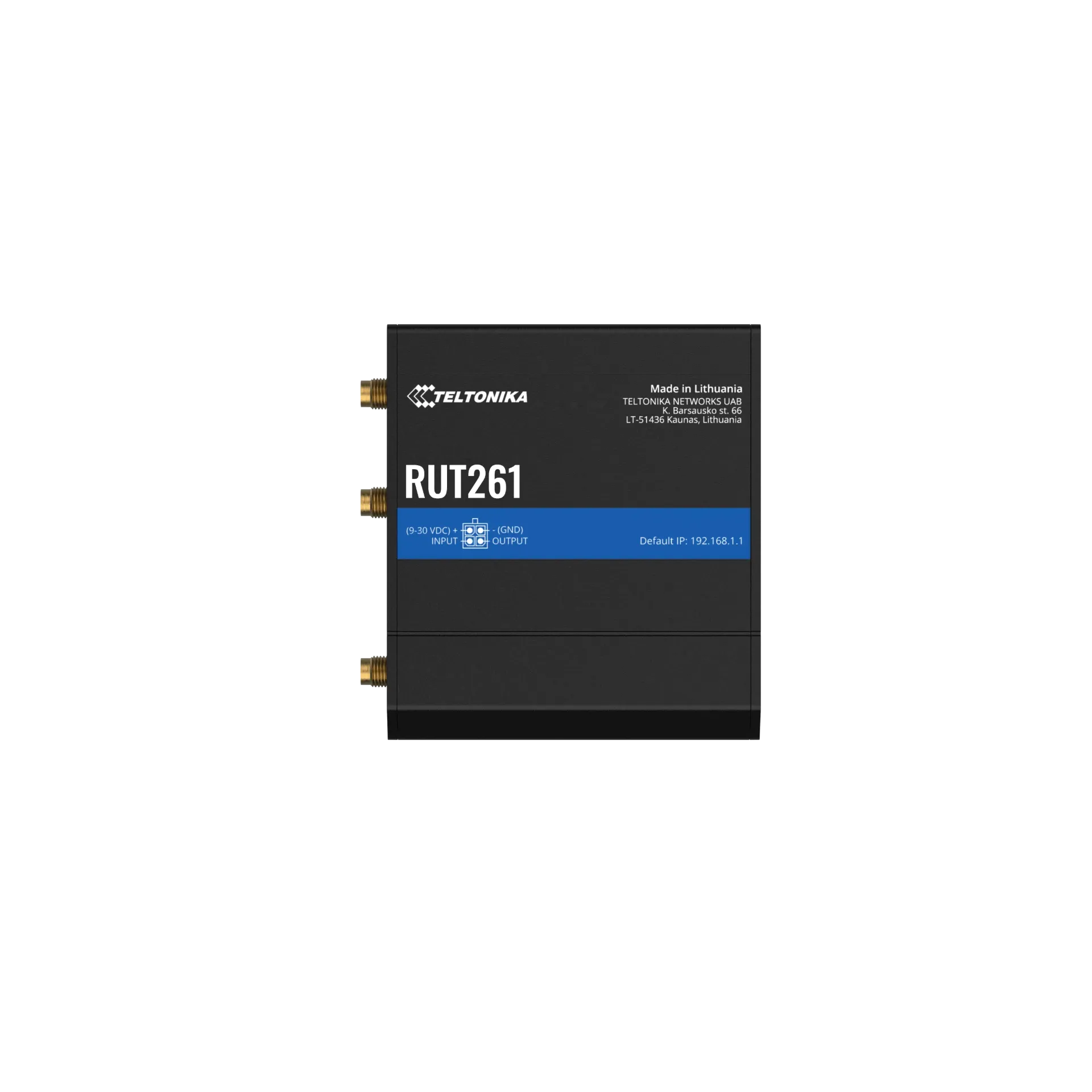

TELTONIKA RUT261 CAT 6 LTE ROUTER

Name: TELTONIKA RUT261 CAT 6 LTE ROUTER
SKU: RUT261AAAAA0
Price: 159.0 EUR
Availability: InStock

(0 review)

RUT261

The RUT261 is a compact, cost-effective mobile LTE router designed to provide fast and stable connectivity via 4G Cat 6, ensuring optimal throughput for daily operational needs.

159.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Out of stock: Contact us for delivery time

The RUT261 is a compact, cost-effective mobile LTE router designed to provide fast and stable connectivity via 4G Cat 6, ensuring optimal throughput for daily operational needs. Thanks to its space-saving housing, the device can be easily integrated into tight or built-in installations, making it ideal for environments with limited space. With two Ethernet ports, the RUT261 provides essential LAN and WAN connectivity, ensuring reliable wired networks where needed. The device focuses on core functionality and offers the essential features required for industrial applications, without extra complexity or unnecessary costs. This makes the RUT261 a practical and affordable choice for streamlined connectivity.

COST-EFFECTIVE 4G CAT 6

Optimise daily operations with affordable LTE Cat 6 speeds

COMPACT FORM

Can be integrated into tight or built-in setups thanks to the compact housing

DUAL ETHERNET PORTS

Provides essential LAN and WAN connectivity

ZERO-TOUCH IMPLEMENTATION

Manage devices, perform maintenance, enable VPN access and collect data via RMS.

Product Features

Feature	Specification
Hardware
Mobile Connection	4G LTE Cat 6: up to 300 Mbit/s download and 50 Mbit/s upload 3G: up to 42 Mbit/s download and 5.76 Mbit/s upload
Processor	MediaTek, 580 MHz, MIPS 24KEc
RAM	128 MB DDR2
Storage	32 MB NOR flash
Power	4-pin industrial DC power connector, 9–30 V DC
SIM	1 × SIM slot (mini-SIM, 2FF), 1.8 V / 3 V, external SIM holder
Antenna Connections	2 × SMA for mobile communication; 1 × RP-SMA for wifi
Ethernet	2 × RJ45, 10/100 Mbit/s: 1 × WAN (configurable as LAN), 1 × LAN
Wifi	802.11b/g/n (Wi-Fi 4); access point (AP) and station (STA)
Inputs and Outputs	1 × digital input: 0–6 V = logic low; 8–30 V = logic high 1 × digital output: open collector, maximum 30 V and 300 mA
Status LEDs	2 × connection type; 5 × mobile connection signal strength; 1 × LAN status; 1 × WAN status; 1 × power
Operating temperature	−40 °C to +75 °C
Housing	Housing and panels of anodised aluminium
Dimensions (w × h × d)	83 × 25 × 74 mm
Weight	132 g
Software
Operating system	RutOS (based on OpenWrt Linux operating system)
Mobile features	Status, SMS, USSD, block/allow list, multiple PDNs, frequency band management, protection against prolonged SIM inactivity, SIM PIN management, APN, bridge, passthrough
Wireless features	Wifi security, SSID/ESSID, wifi users, wireless connection features, wireless MAC filter, QR code generator for wifi, TravelMate
Network features	Routing, network protocols, support for VoIP passthrough, connection monitoring, firewall, firewall status page, port management, network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, network backup, load balancing, hotspot, Hotspot 2.0, SSHFS, VRF support, traffic management, IGMP proxy
Security	Authentication, firewall, attack prevention, VLAN, management of mobile data limits, web filter, access control, certificate management, 802.1x
VPN and tunneling	OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, EoIP, OpenConnect
Monitoring and management	Web interface, FOTA, SSH, SMS, call, email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, ThingWorx, Cumulocity – Cloud of Things, Azure IoT Hub, AWS IoT Core
Services	BACnet, OPC UA, Modbus, Data to Server, Modbus MQTT Gateway, DNP3, DLMS/COSEM, API
