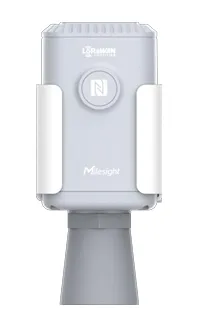

Milesight EM500-UDL-868M-C050 Capteur de Distance/ Niveau Ultrasonique 0,25 - 5m

Name: Milesight EM500-UDL-868M-C050 Capteur de Distance/ Niveau Ultrasonique 0,25 - 5m
Price: 249.0 EUR
Availability: InStock

(0 review)

The EM500-UDL is designed for detecting distances or levels of objects in harsh environments and transmitting data using LoRaWAN® technology. In combination with the Milesight LoRaWAN® gateway and the Milesight development platform, users can manage all sensor data remotely. EM500-UDL is widely used for outdoor applications such as liquid level monitoring and water tank level monitoring, etc.

249.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Out of stock: Contact us for delivery time

The M500-UDL is designed for detecting object distances or levels in demanding environments and for transmitting data via LoRaWAN® technology. Thanks to this energy-efficient technology, the M500-UDL can last up to 10 years on a 19,000 mAh battery. In combination with the Milesight LoRaWAN® gateway and the Milesight Development Platform, users can manage all sensor data remotely. The EM500-UDL is widely used for outdoor applications such as monitoring liquid levels and monitoring the level in water tanks, etc.

Detection of object distances or levels without contact
Transmission over ultra-long distances up to a line of sight of 10 km
IP67 waterproof housing for applications in demanding environments  Built-in -built-in replaceable battery of 19,000 mAh that lasts 10 years without replacement
Stores historical data locally and supports retransmission
Equipped with NFC for easy configuration
Compatible with standard LoRaWAN® gateways and network servers
Fast and easy management with the Milesight IoT Cloud and the Milesight Development Platform

Product features

Milesight EM500-UDL-868M-C050 Technical specifications
Wireless communication
Technology	LoRaWAN®, Milesight D2D
Antenna	Internal antenna
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Transmission power	16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz)
Sensitivity	-137 dBm at 300 bps
Operating mode	OTAA/ABP, class A
Measurement
Measurement range and accuracy	W050: 0.3–5 m, ±1% FS W100: 0.5–10 m, ±1% FS C050: 0.25–5 m, ±(1 + 0.3% × S) cm, S = distance C100: 0.25–10 m, ±(1 + 0.3% × S) cm, S = distance
Resolution	1 mm
Others
LED indicator	1 × internal LED indicator
Button	1 × internal on/off/reset button
USB	1 × internal USB Type-C port for configuration and console
Software
Enable and disable	NFC, internal on-off button
Configuration	Mobile app (via NFC), PC software (via USB Type-C), downlink
Advanced features	Data storage (1,000 registrations), resending data, data retrieval, threshold alarm, change alarm, Milesight D2D controller
Physical properties
Power	1 × ER34615 Li-SOCl₂ battery of 19,000 mAh
Battery life*	10 years (10 min interval, 25 °C)
Operating temperature	W050/W100: -30 °C to +65 °C C050/C100: -15 °C to +60 °C
Relative humidity	0–80% (non-condensing)
Protection class	IP67
Housing	ABS + PC
Colour	Black-grey (C050/C100), grey (W050/W100)
Weight	C050/C100: 362.7 g; W050/W100: 370.4 g (including battery and mounting bracket)
Dimensions	156.1 × 71 × 69.5 mm (6.1 × 2.8 × 2.7 inches)
Mounting	Pole, wall or DIN rail mounting
Certifications and standards
Certifications	CE, FCC, ISED, Telec, LoRaWAN® Certified
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 level 3, IEC 61000-4-3 level 2, IEC 61000-4-8 level 4
Radio frequency	FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2
Safety	EN 62368-1
Environment	RoHS

* The battery life is based on laboratory tests with the standard battery from Milesight. Actual life may vary depending on the battery brand and environmental factors.
