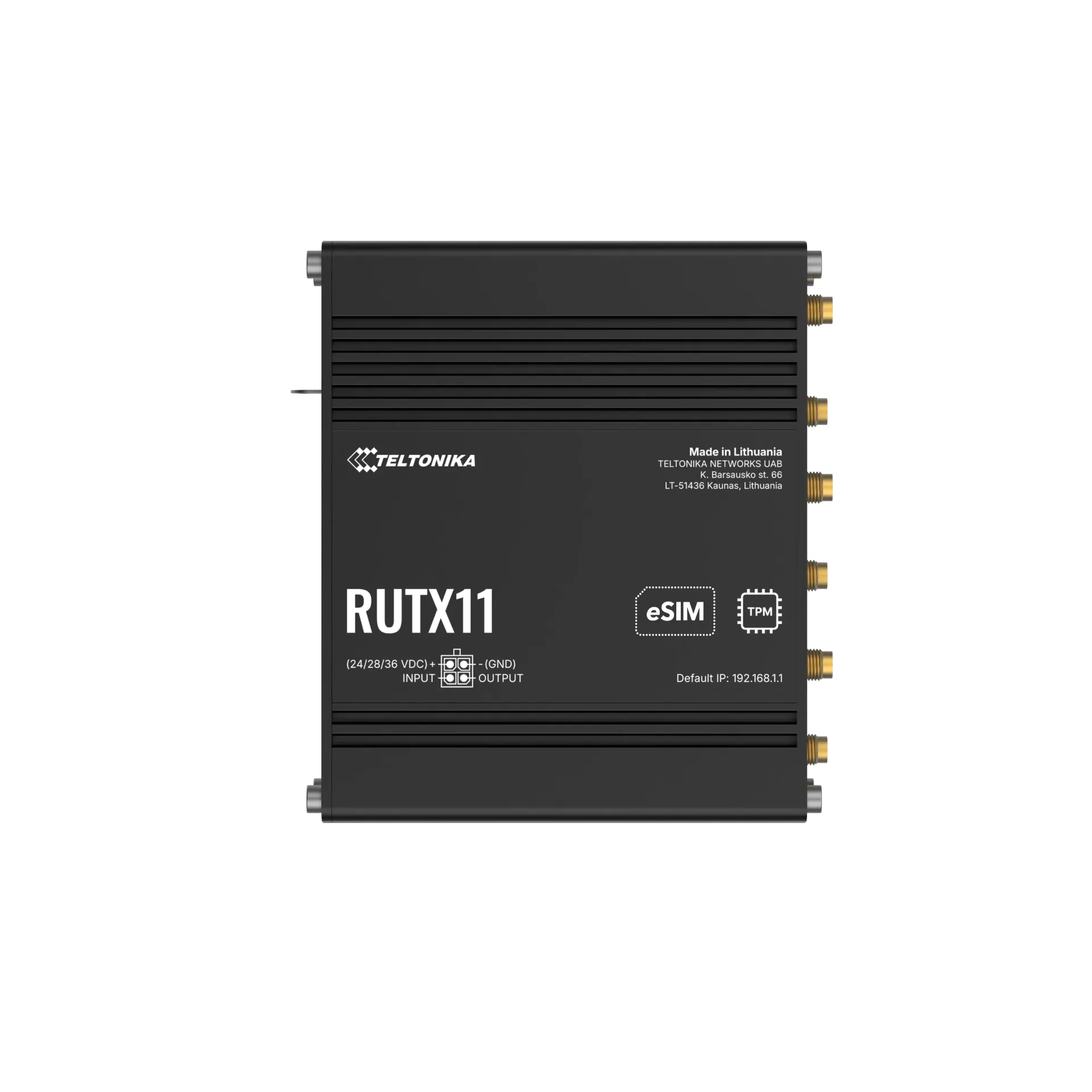

TELTONIKA RUTX11

Name: TELTONIKA RUTX11
SKU: RUTX11000000
Price: 340.0 EUR
Availability: InStock

(0 review)

The Teltonika RUTX11 is a very powerful device equipped with a Dual-SIM with automatic Failover, Backup WAN and other software features. A wide range of internal hardware interfaces allows this product to be used in energy-intensive industrial applications where speed and robustness are central to the solution. 4G LTE – Cat 6 DL up to 300 Mbps synchronous with 4 x 1 Gbit Ethernet ports provides a seamless data transfer experience with automatic failover and a backup WAN. Bluetooth LE allows sensors to be connected directly to the router, minimising the ecological footprint.

End of order period: 3 February 2027

End of production: 3 August 2027

End of support: 3 August 2032

Replacement models: RUTM11, RUTM16, RUTC16

340.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Shipping: 2-3 business days

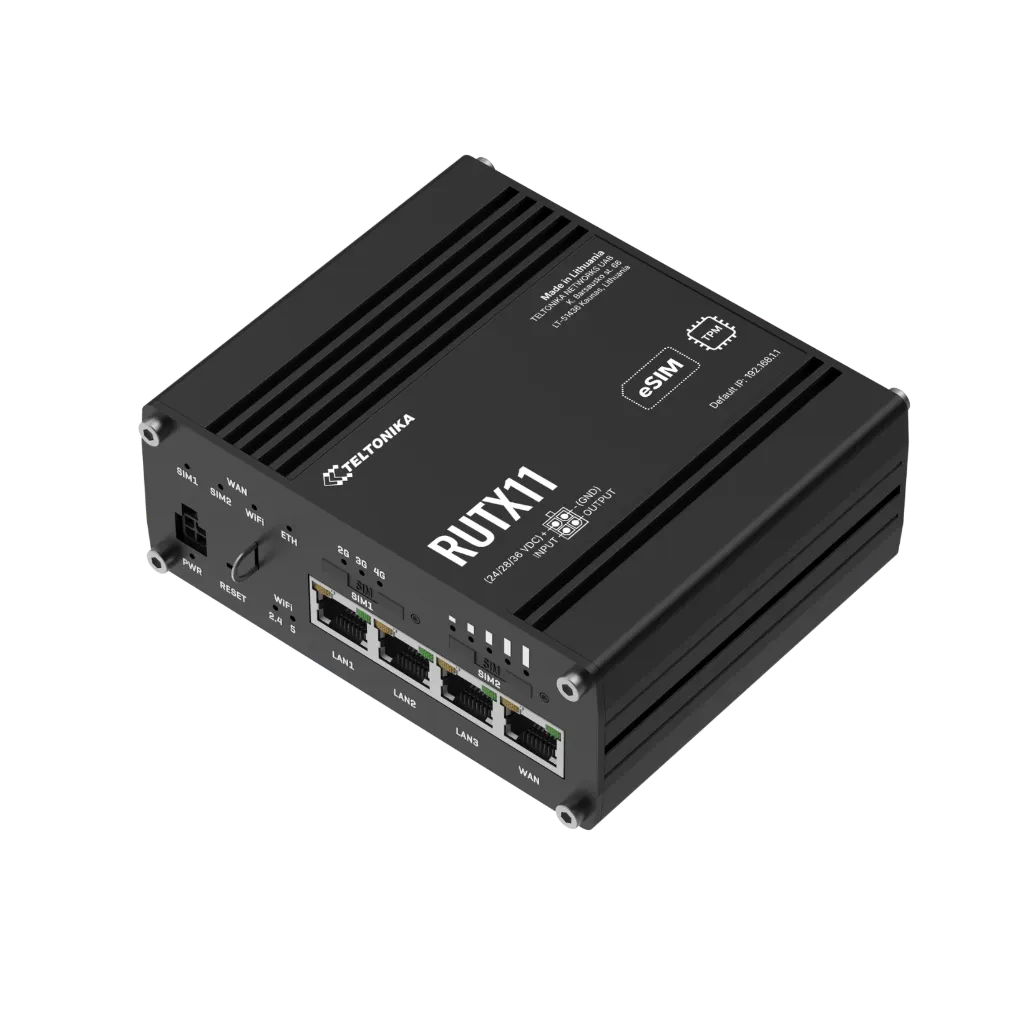

INDUSTRIAL CELLULAR ROUTER RUTX11

This powerful LTE Cat 6 cellular router is designed for professional applications that require a reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC wifi, Bluetooth LE, and is EN 45545-2 certified, making it approved for use in passenger trains across Europe.

4G LTE CAT 6

Cellular speeds up to 300 Mbps with Carrier Aggregation

DUAL SIM

With automatic failover, backup WAN, and other switching scenarios

WIFI & BT

Wave-2 802.11ac dual-band wifi and Bluetooth LE

GIGABIT ETH

4 x Gigabit Ethernet ports supporting up to 128 port/tag-based VLANs

Product Features

HARDWARE	Teltonika
Product Code	RUTX11000000
EAN Code
5G	No
4G/LTE	YES, CAT6
2G/3G	3G
CPU (MHz)	4x717
RAM (MB)	256
Flash Memory (MB)	256
Power Supply Voltage	9-30 V DC, 4 pins stekker
eSim	No
SIM Card Slots	2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

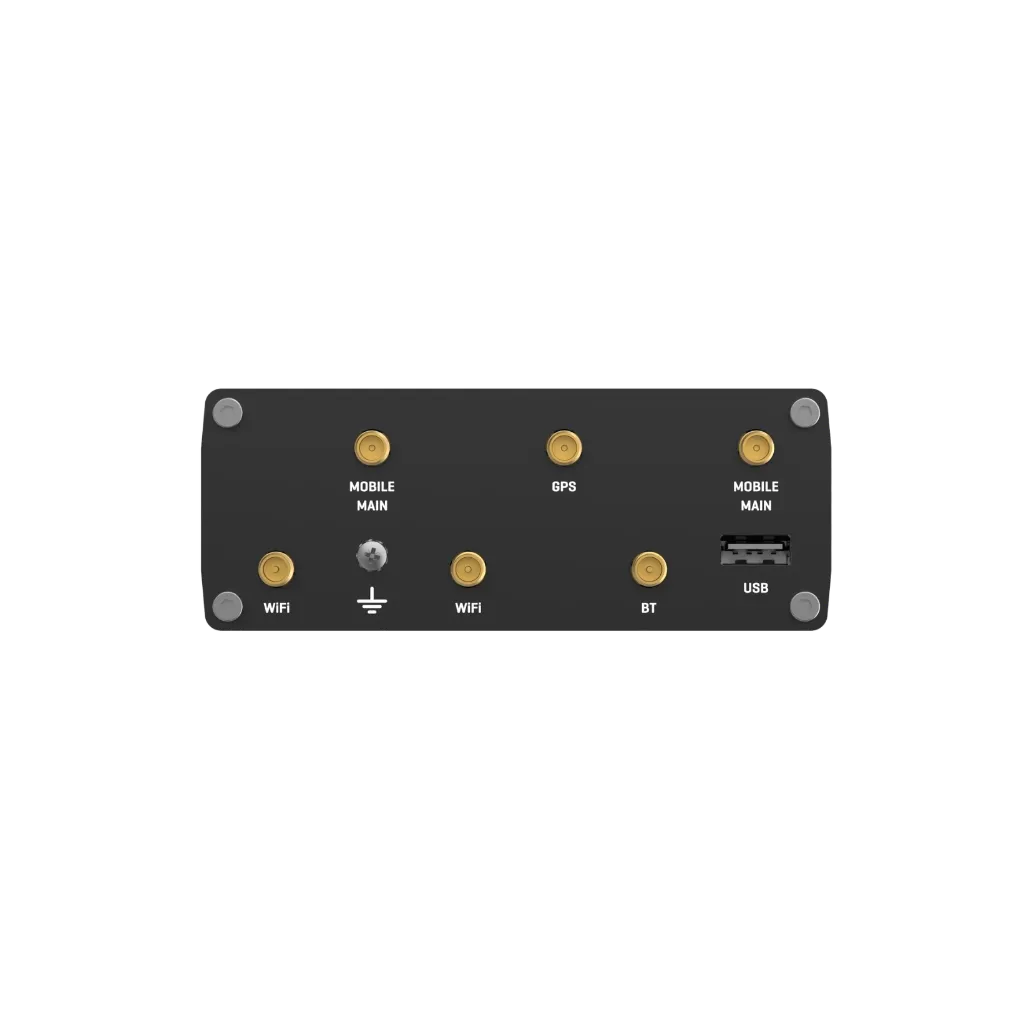

Antenna Connectors	2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS

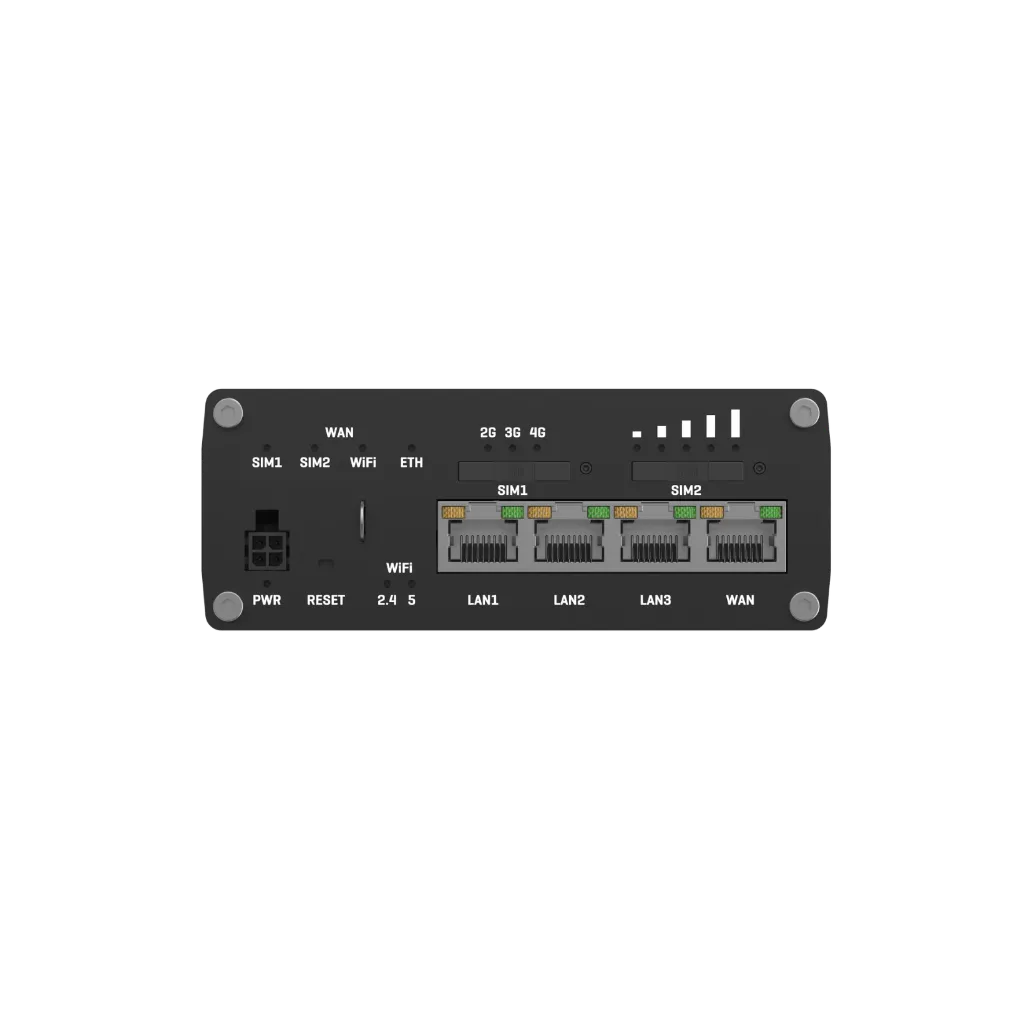

Ethernet ports	4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3x LAN
Speed Internet ports (Mbps)	10/100/1000 Mbps
Active POE- OUT	-
Active POE-IN	-
Passive POE-IN	Yes
WiFi standard	IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs / Outputs	On 4-pin connector: 1 x Digital input, 1 x Digital open collector output
Serial RS232	No
Serial RS485	No
Mbus	No
Bluetooth	Yes, 4.0 Low energy
SD Card	No
USB	Host
Integrated din rail mounting	No
Grounding terminal	Yes
Temperature range	-40 to +75 °C
Housing	Aluminium , IP30
Dimensions	115 x 44, 2 x 95.1 mm
SOFTWARE
Operating System	RutOS : (OpenWrt based Linux OS)
Mobile capabilities	Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Wireless capabilities	802.11ac (WiFi 5) with transmission speeds of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Network capabilities	Failover (Network backup), VLAN, QoS, Load Balancing
Security	Pre-shared key, digital certificates, X.509 certificates Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and Management	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Services	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
Location Tracking	NMEA forwarding, AVL, Geofencing
SMS features	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
HOTSPOT	Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page
