Product features
| Parameter | Value |
| HARDWARE | Teltonika |
| Product code | TRB145003000 |
| EAN code | |
| Mobile | 4G/LTE (Cat 1), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| Storage | 512 MB SPI flash |
| Memory | 128 MB, DDR2 |
| Power option | 4-pin power connector, 9 - 30 VDC |
| SIM | 1 × internal SIM holder (2FF) |
| Antenna connectors | 1 × SMA for mobile |
| Inputs/outputs | On 4-pin connector: 2 × digital input / digital open-collector output (configurable) |
| Serial | 1 × RS485 |
| Other | 1 × virtual network interface via micro-USB |
| Status LEDs | 3 × connection type, 5 × signal strength, 1 × power |
| Operating temperature | -40 °C to +75 °C |
| Housing | Aluminium housing with option for DIN rail mounting |
| Dimensions (W × H × D) | 74.5 × 25 × 64.4 mm |
| Weight | 130 g |
| Software | |
| Operating system | RutOS |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| Monitoring and management | Web interface, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget Reboot, periodic reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Modbus | TCP client, TCP server, RTU server, RTU gateway, Modbus over MQTT |
| Serial | Console, over IP, modem, NTRIP, Modbus |

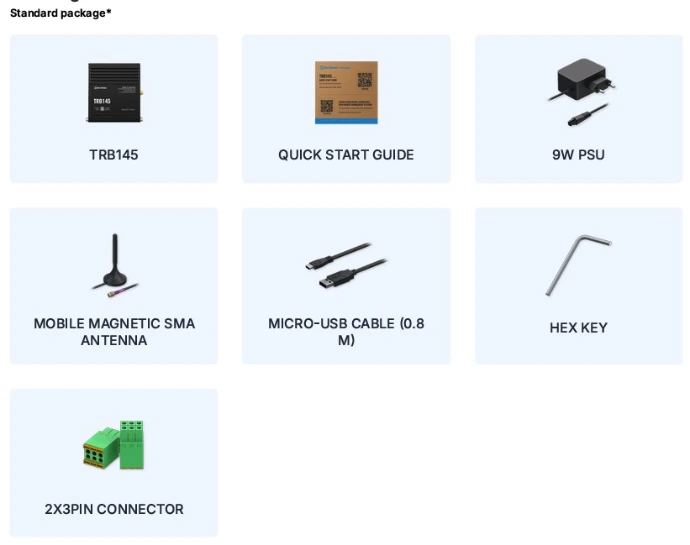

In the box
