Technical specifications
| Parameter | Nominal value |
| Manufacturer | Teltonika |
| Type | PR3PDNP0 |
| Output power | 20 W |
| Input voltage range | 85 - 264 VAC, 47 - 63 Hz |
| DC output voltage | 12 V |
| DC output current | 0 - 1.67 A |
| Output ripple and noise | 120 mVp-p |
| Input voltage regulation | ±1 % |
| Load regulation | ±1 % |
| Efficiency | 80 % |
| Adjustable range DC output voltage | ±1 % |
| Test standards | EN
60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 55022:2010 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010/A1:2015 |
| Inrush current | Cold start: 20 A / 115 VAC; 40 A / 230 VAC |
| Overload protection | 105 % - 160 %: output is disabled, automatic recovery |
| Surge protection | 120 % - 140 %: output voltage is disabled; on/off cycle required for recovery |
| Start-up, rise, and bridging time | 500 ms; 30 ms / 230 VAC at full load; 1000 ms; 30 ms / 115 VAC at full load |
| Isolation voltage | Input-output: 1.5 kV; input-FG: 1.5 kV; output-FG: 0.5 kV for 1 minute |
| Insulation resistance | Input-output / input-FG / output-FG: 500 VDC / 1000 MΩ |
| Operating temperature | -10 °C to +50 °C |
| Mounting | 35 mm DIN rail |

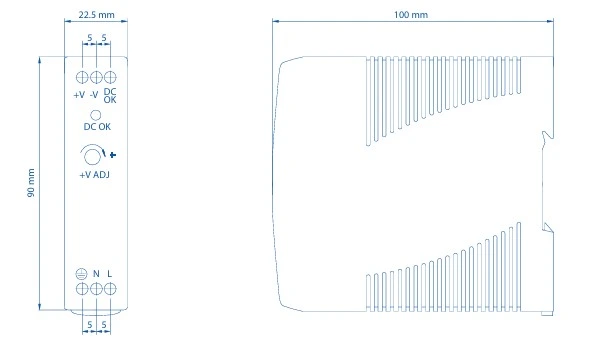

| Dimensions | 22.5 x 90 x 100 mm |
| Weight | 190 g |
