Technical specifications
| Brand | Teltonika |
| Product code | PR1KCS28 |
| Suitable for | Mobile - WiFi - GNSS |
| Frequencies | LTE:
617 – 960, 1710 – 2690 MHz GNSS: 1575 – 1610 MHz WiFi: 2350 – 2500 MHz |
| Antenna Type | Roof antenna |
| LTE Antenna Gain | LTE:
3.5 dBi GNSS: 28 dBi WiFi: 2.5 dBi |
| LTE Auxiliary Antenna Gain | None |
| VSWR | ≤1.5 |
| Impedance | 50 Ω |
| Polarisation | LTE:
Linear - omni directional GNSS: RHCP WiFi: omni directional |
| Connection - Connector type | LTE:
SMA Male GNSS: SMA Male WiFi: RP-SMA Male |

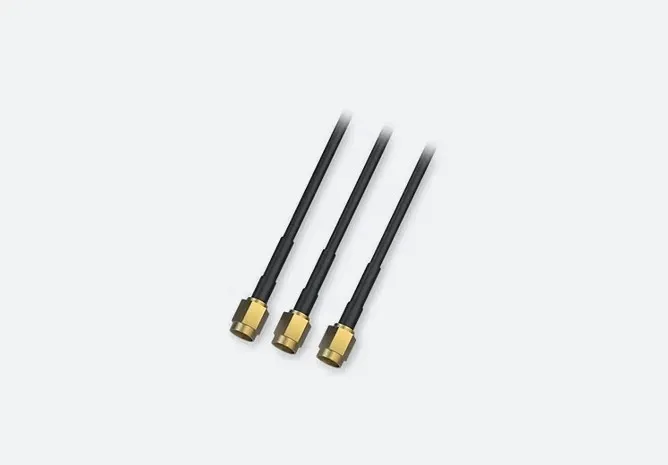

| Cable | 3x RG174, 3000 mm |
| Mounting method | Screw fastening |
| IP ratingi | IP65 |
| Weight | 215 ± 10 g |

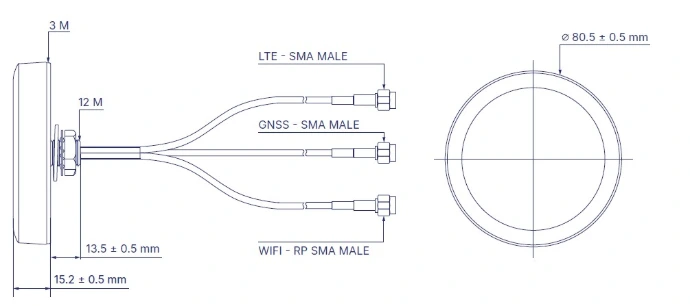

| Dimensions | Ø 80.5 x 15.2 mm |
